Our multi-gas microsensor products

EnviCam® series

Our flagship product line EnviCam-3x is microelectronic gas sensors for IoT & Industry 4.0 solutions.

These microchips are based on our patented CMOSEnvi™ technology, integrating several nanotech-based sensing materials within a CMOS-compatible process. The current products are integrated into a SiP package measuring 10 x 5 x 0.9 mm³, with power consumption below 50 µW continuously (up to 1 measurement per second).

10mm

Overview

Main features

  • Multi-pixel, multi-gas measurement on a single chip
  • Small form factor (10 x 5 x 0.9 mm³)
  • Ultra-low-power (< 50 µW @ 1 Hz measurement frequency)
  • High selectivity
  • Self calibration algorithms (external container-based software)
  • GPIO input and frequency output
  • C firmware library for external MCU


Measured gases

  • Ammonia (NH3) – 0.2 – 200 ppm
  • Carbon monoxide (CO) – 1 – 2.000 ppm
  • Nitrogen dioxide (NO2) – 25 ppb – 200 ppm
  • Formaldehyde (HCHO) – 0.1 – 20 ppm
  • Acetaldehyde (CH3CHO) – 0.1 – 20 ppm
  • Methane (CH4) – Available in Q4 2022
  • Carbon dioxide (CO2) – Available in Q4 2022
  • Hydrogen sulfide (H2S) – Available in Q1 2023
  • Extended measurement range and dedicated developments are available upon request
  • Under development: BTEX, ethylene oxide (EtO), ethylene, hydrogen sulfide (SO2), hydrogen (H2) and acetone

Top specs

Power consumption

< 50 µW @ 1 Hz

Power supply

VDD: 1.8 V
VDDIO: 1.8-3.3 V

Output

0.1 - 100 kHz

Current ON

< 1 mA

Current OFF

< 10 µA

Package

LGA
10 x 5 x 0.9 mm³

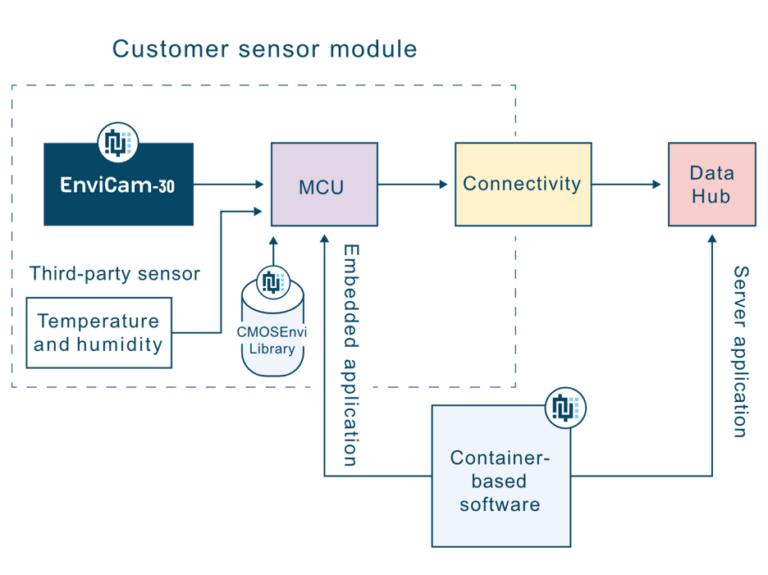

System view

VOCSens products are pioneering in terms of autonomy, accuracy, versatility and portability, while ensuring continuous measurements in an active way, helping companies and institutions to unveil their environmental parameters, strenghten safety and health.
